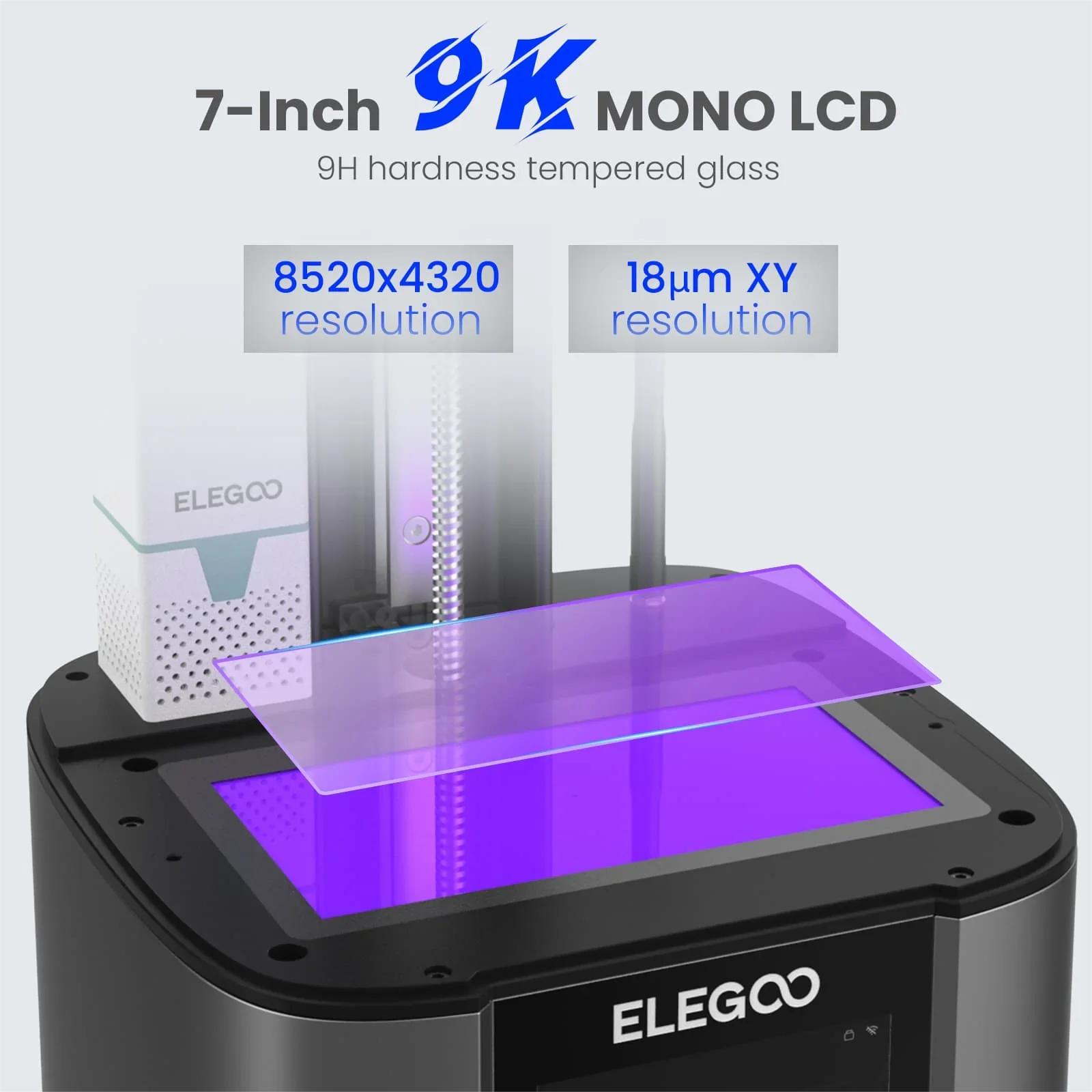

【7-Inch 9K Mono LCD】Equipped with a 7-inch 9K mono LCD offering an impressive 8520x4320 resolution and 18µm XY resolution, Mars 4 Ultra allows you to print incredible complex models with crisp details. The mono LCD is protected by a 9H hardness tempered glass, ensuring it withstands daily wear and tear while maintaining optimal performance.

【Powerful Linux OS】With built-in 4G RAM and no more delay loading files, the Linux operating system ensures faster & smooth operation and efficient resource management.

【Wi-Fi Connection】Effortlessly transfer files via the built-in WiFi connectivity, supporting both 2.4G and 5G networks with a transfer speed of 6-10Mbps, eliminating the need for cumbersome cables.

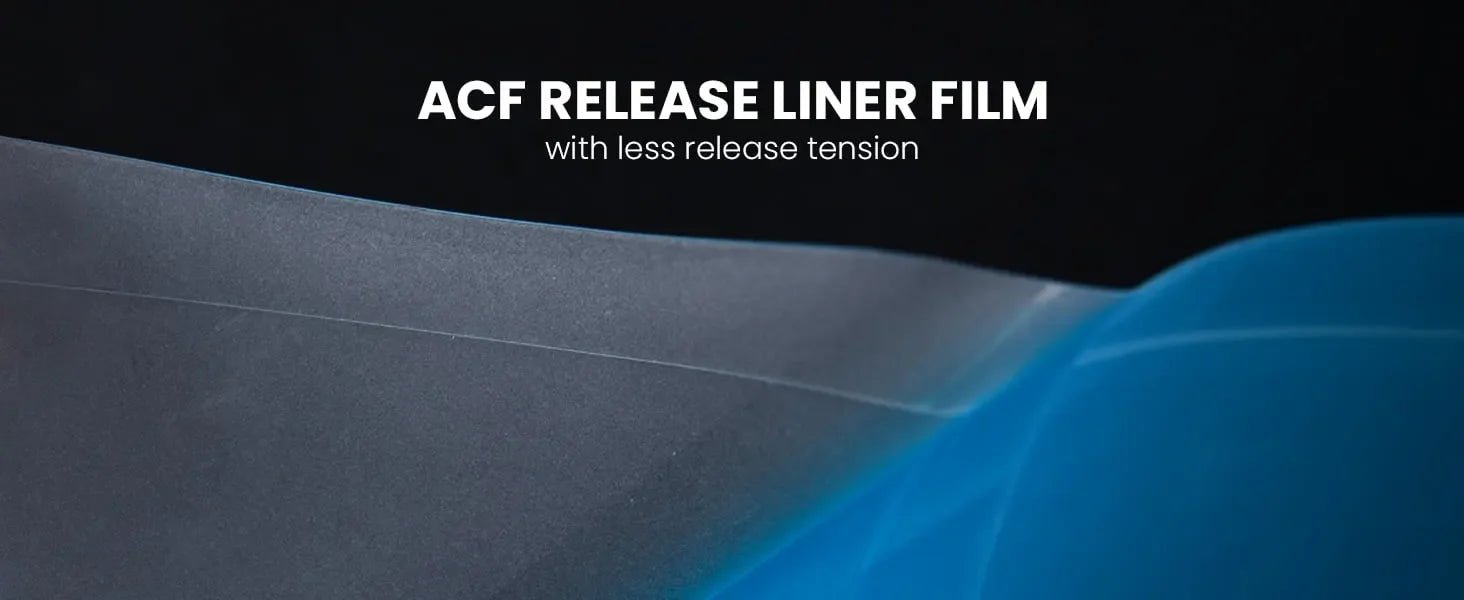

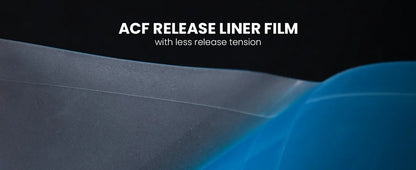

【Effortless Leveling】The 4-point hassle-free leveling system makes setup a breeze, and after one leveling, no need to repeat leveling, ensuring perfect prints every time. The laser-carved surface on the build plate offers improved adhesion, reducing the risk of print failures. Brand new ACF release liner film with less release tension for a high printing success rate even at a faster printing speed.

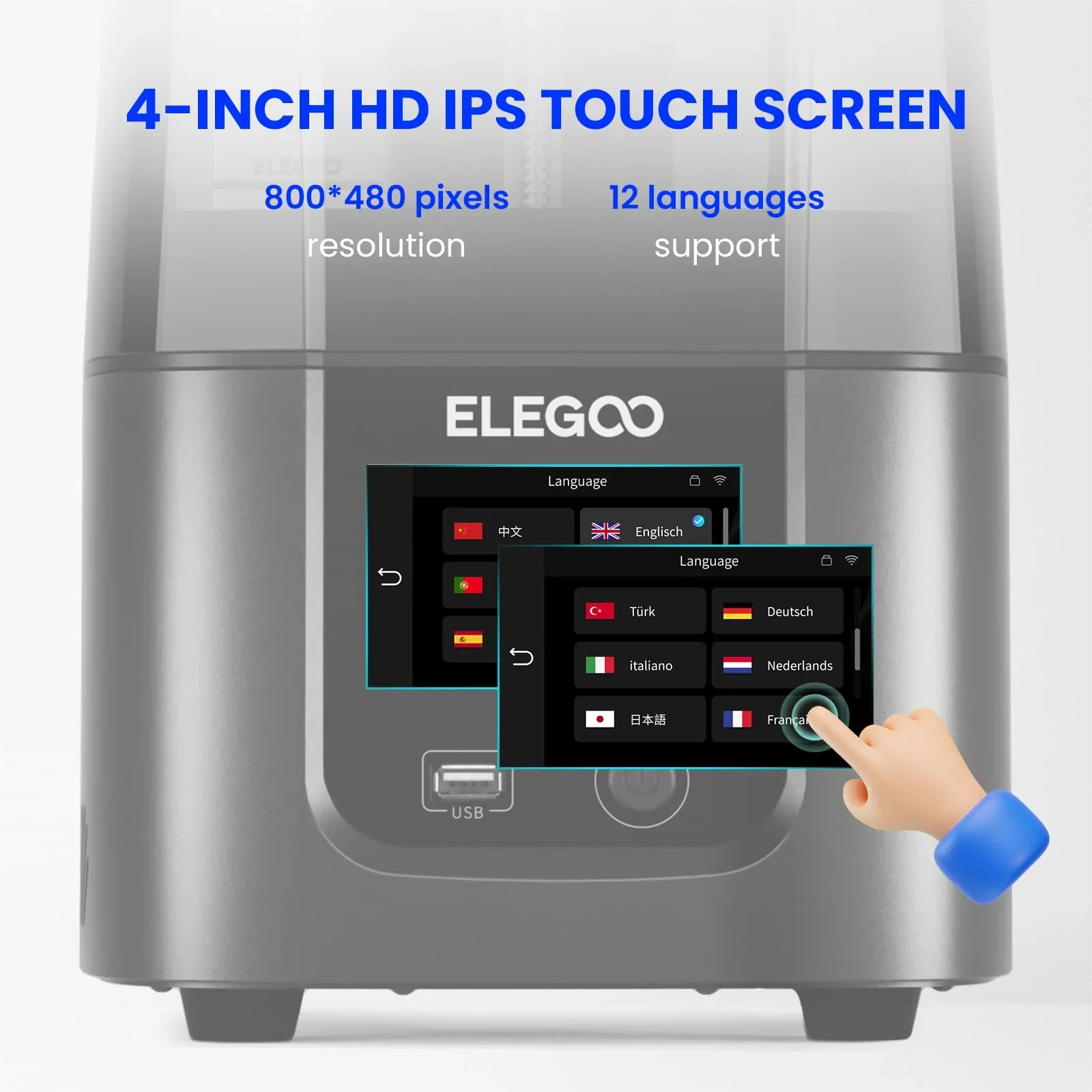

【User-Friendly Touch Screen】Navigate easily with the 4-inch HD IPS touch screen with a resolution of 800*480 pixels and support for 12 languages, making operation a breeze for users of all skill levels.

【Purified Printing Environment】The plug-in air purifier with an upgraded activated carbon filter that effectively filters out resin odor during printing. This feature enhances the overall printing experience and provides a healthier environment for you.

Product Parameters

Product model: MARS 4 Ultra 9K

LCD: 6.7-inch 9K Mono LCD

System: EL3D-3.0.1

Slicer Software: ChituBox

Technology: MSLA 3D Stereo lithography

Layer Thickness: 0.01-0.2mm

Printing Speed: 30-70mm/h

Z Axis Accuracy: 0.02mm

XY Resolution: 0.018mm(8520*4320)

Build Volume: 156.36mm(L)*77.76mm(W)*165mm(H)

Light Source: UV Integrated Light (wavelength 405nm)

Languages: Chinese English Japanese Dutch Korean French German Russian Italian Spanish Turkish Portuguese

Connectivity: USB

Weight: 15.43lbs(7kg)

Operation: 3.5 Inch Touch Screen

Power Requirements: 100-240V 50/60Hz 24V 3A

Printer Dimensions: 22.7cm(L)*22.7cm(W)*44.35cm(H)

9K Accuracy with Stunning Detail

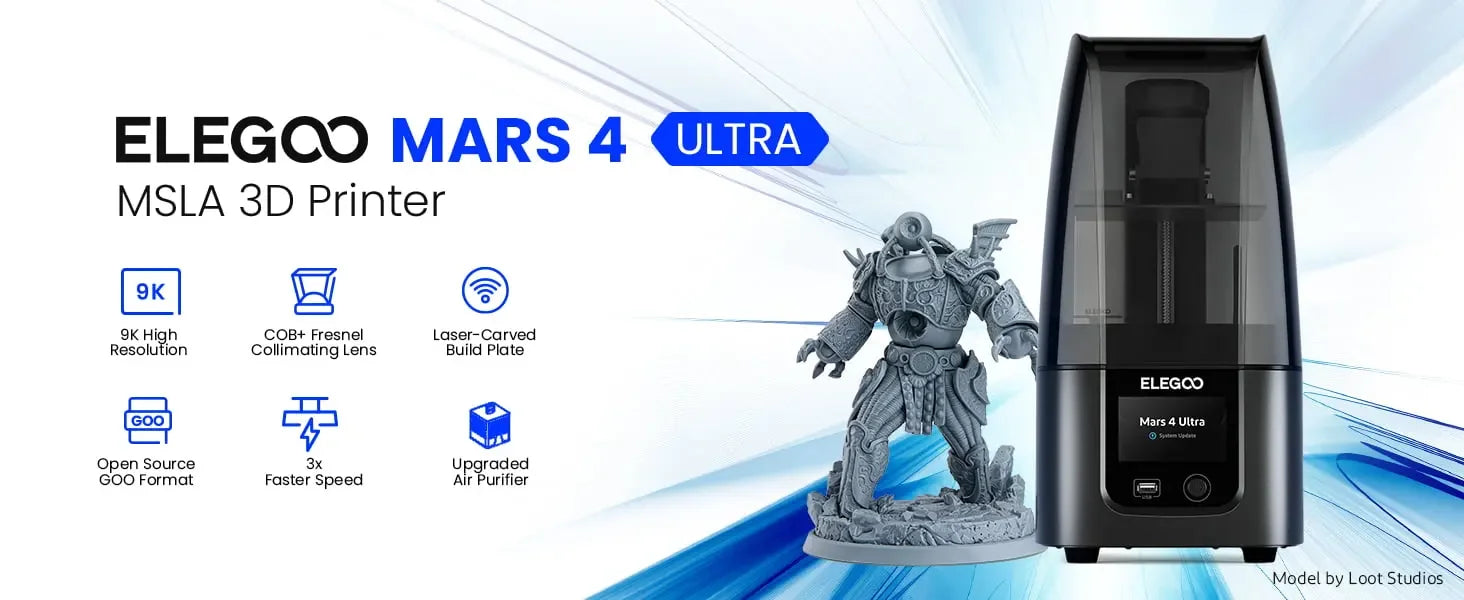

The ELEGOO Mars 4 Ultra offers exceptional printing quality and details. It features a 7-inch 9K Mono LCD with 8520*4320 resolution that captures every tiny detail, allowing you to produce highly detailed models with an incredible 18 microns XY precision.

Mars 4 Ultra's fast printing capabilities are equally impressive, allowing you to achieve a print speed of up to 150mm/H with ACF release liner film and the upcoming ELEGOO FAST standard resin. This 3x faster printing speed enables you to produce high-quality models with incredible speed and efficiency.

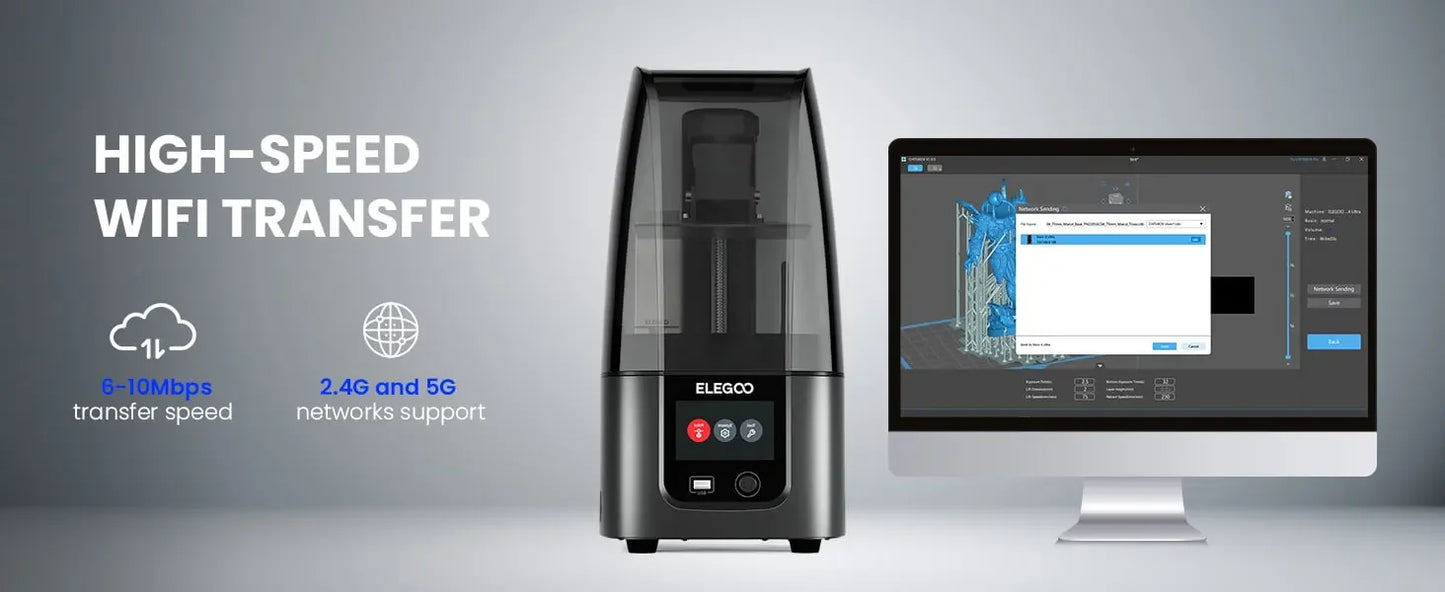

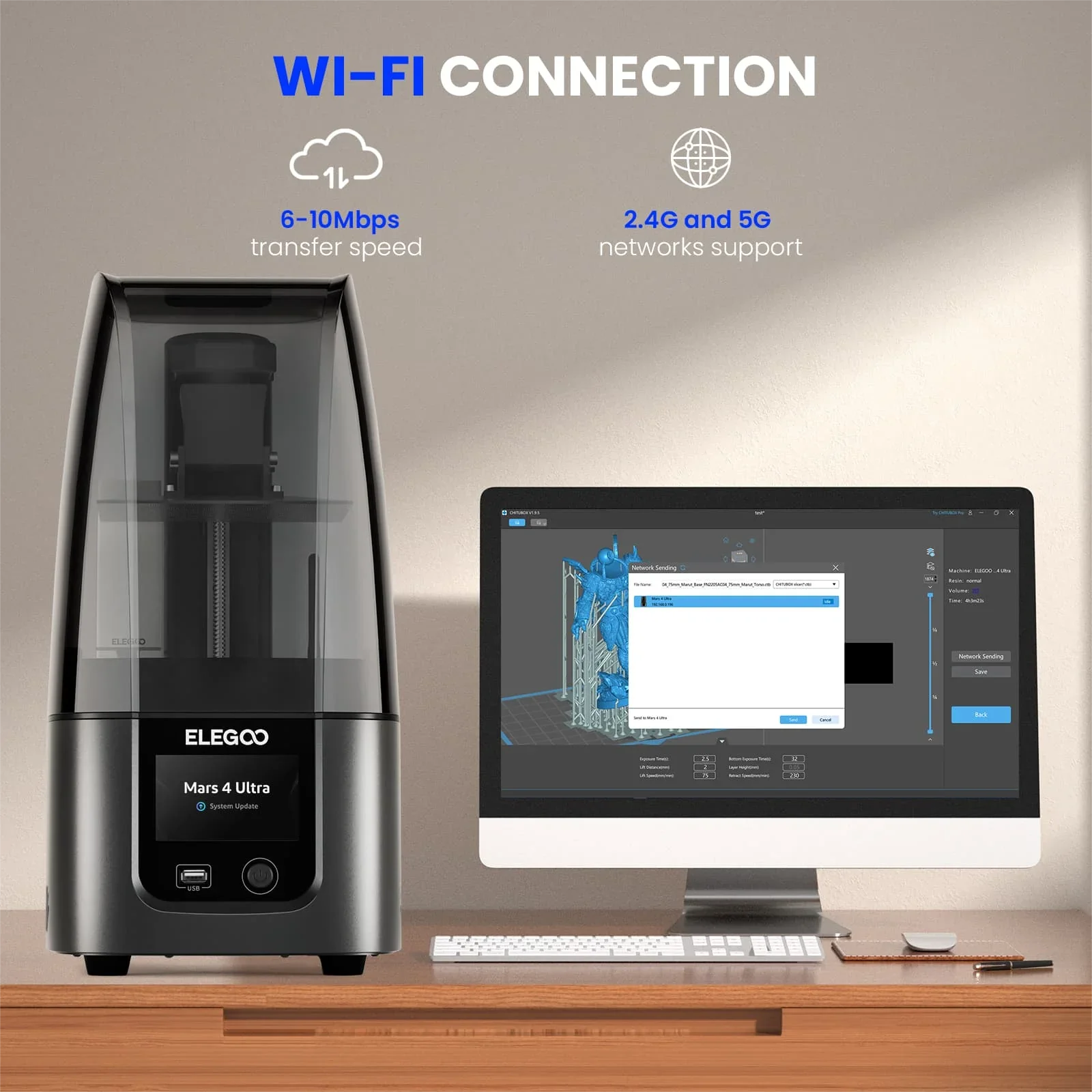

High-Speed Wifi Transfer

The brand new Linux OS with built-in 4G RAM supports Wi-Fi transfer, with a transmission speed of 6-10Mbps. Plus, it is compatible with both 2.4G and 5G networks, making file transfer a breeze from your computer or mobile device. The detachable Wifi antenna is conveniently placed on the side of the printer's Z-axis, making it easy to connect to your network.

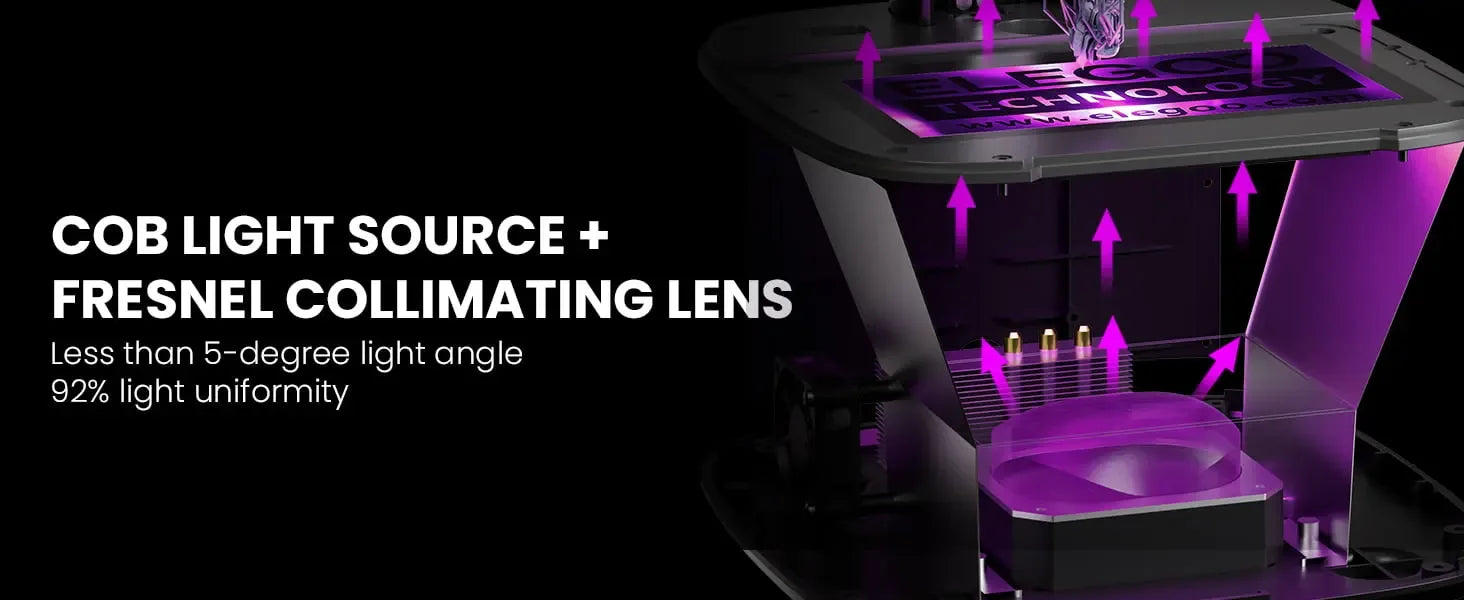

COB Light Source + Fresnel Collimating Lens

Experience vertical and uniform exposure of 405nm wavelength beam thanks to the COB light source and Fresnel collimating lens, which provides consistent curing across the entire build area with less than a 5-degree light angle and 92% light uniformity. This ensures that your models have a smooth and even surface finish.



Stable Printing Performance

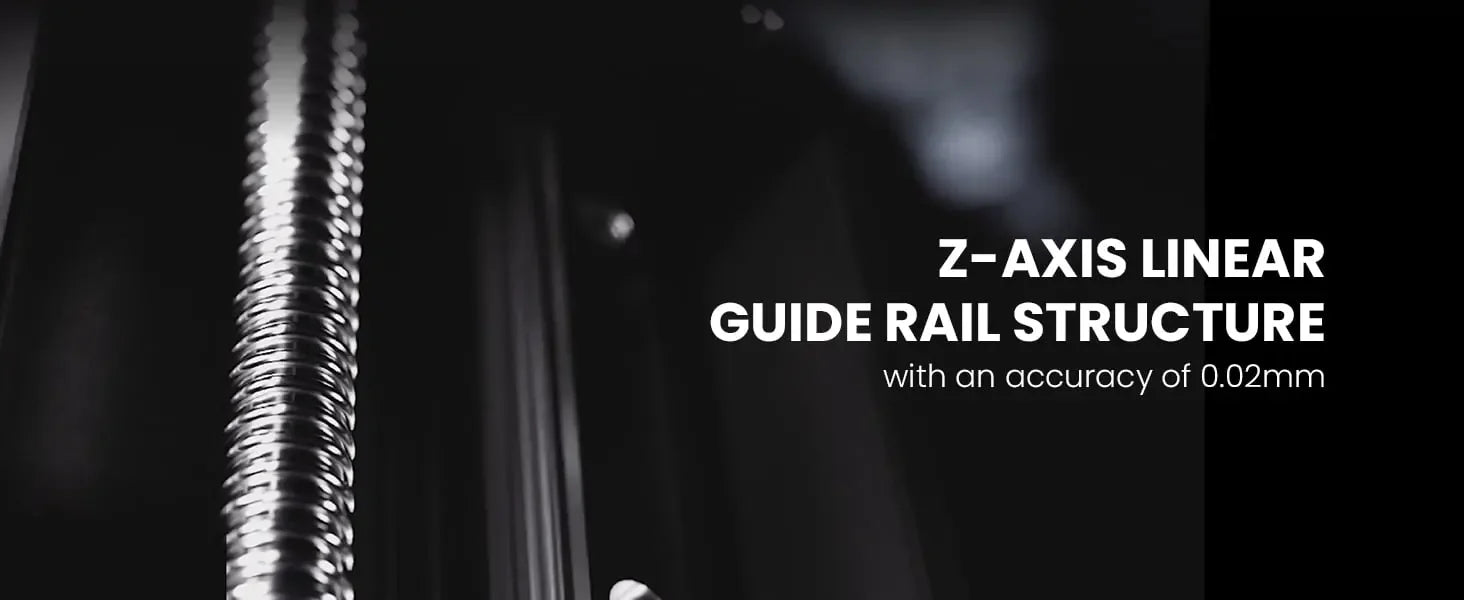

The Z-axis adopts a linear guide rail structure with an accuracy of 0.02mm, ensuring precise and stable movement to help eliminate riffles on final prints and produce smooth and delicate surfaces on your models.

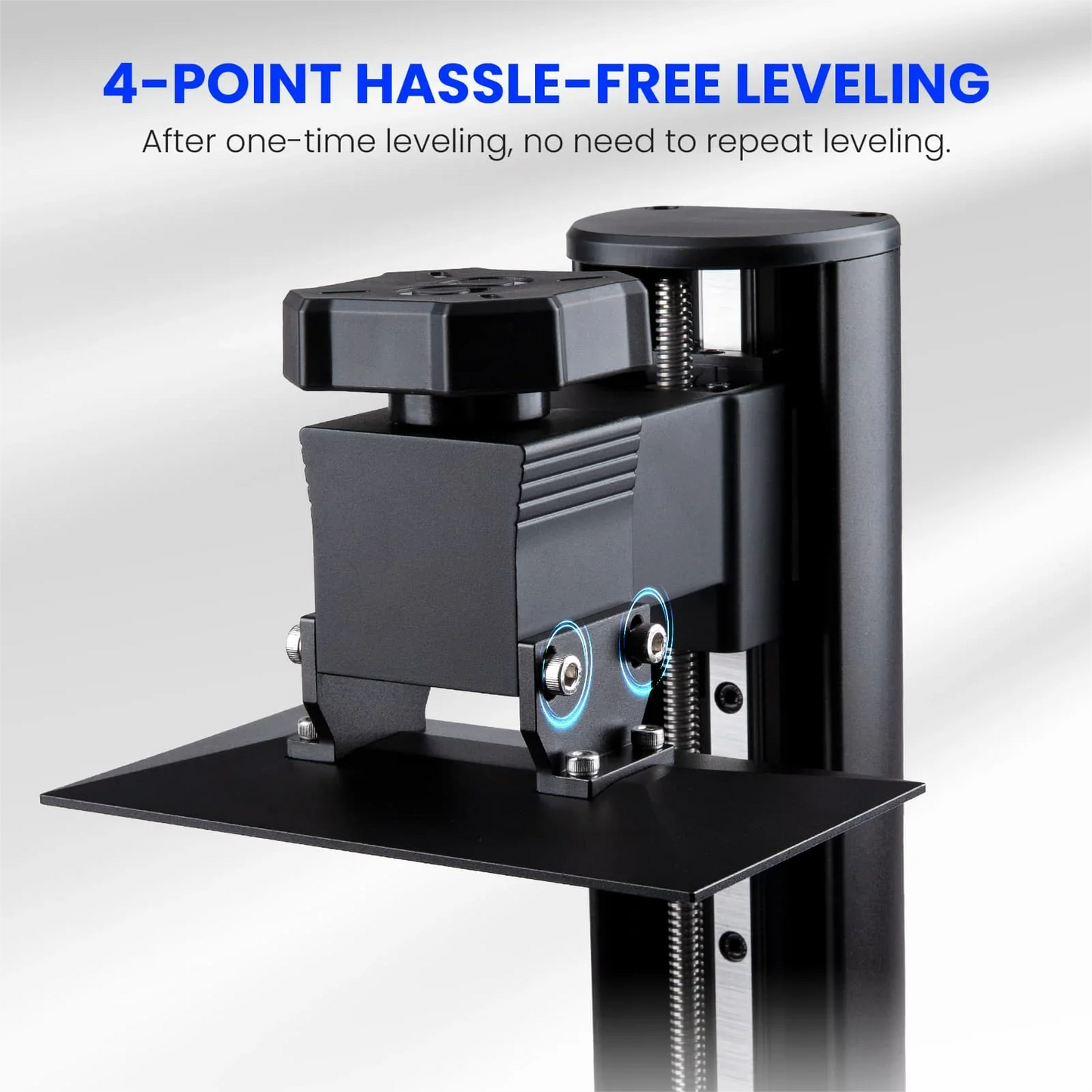

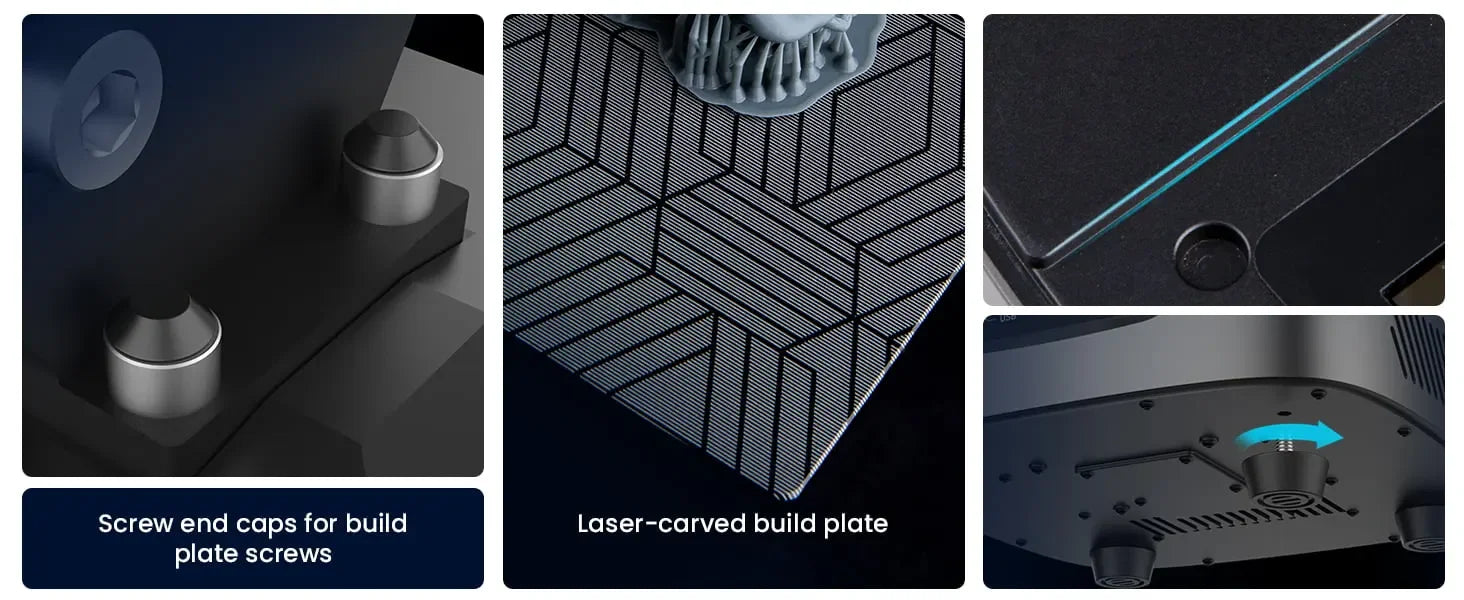

The 4-point leveling system with four clockwise-tightening screws is design to eliminate the need for repeated leveling after one-time leveling, saving you time and effort.

The build plate has a laser-carved surface to enhance adhesion during the printing process, even when printing large models.

Improved Printing Experience

There is a large cooling fan and heat-conducting copper tubes positioned next to the COB light source for rapid heat dissipation. This feature not only enhances the printer's performance but also extends its service life.

The upgraded air purifier has a protective plastic case to safeguard the built-in activated carbon filter during transportation and effectively remove resin odor during printing.

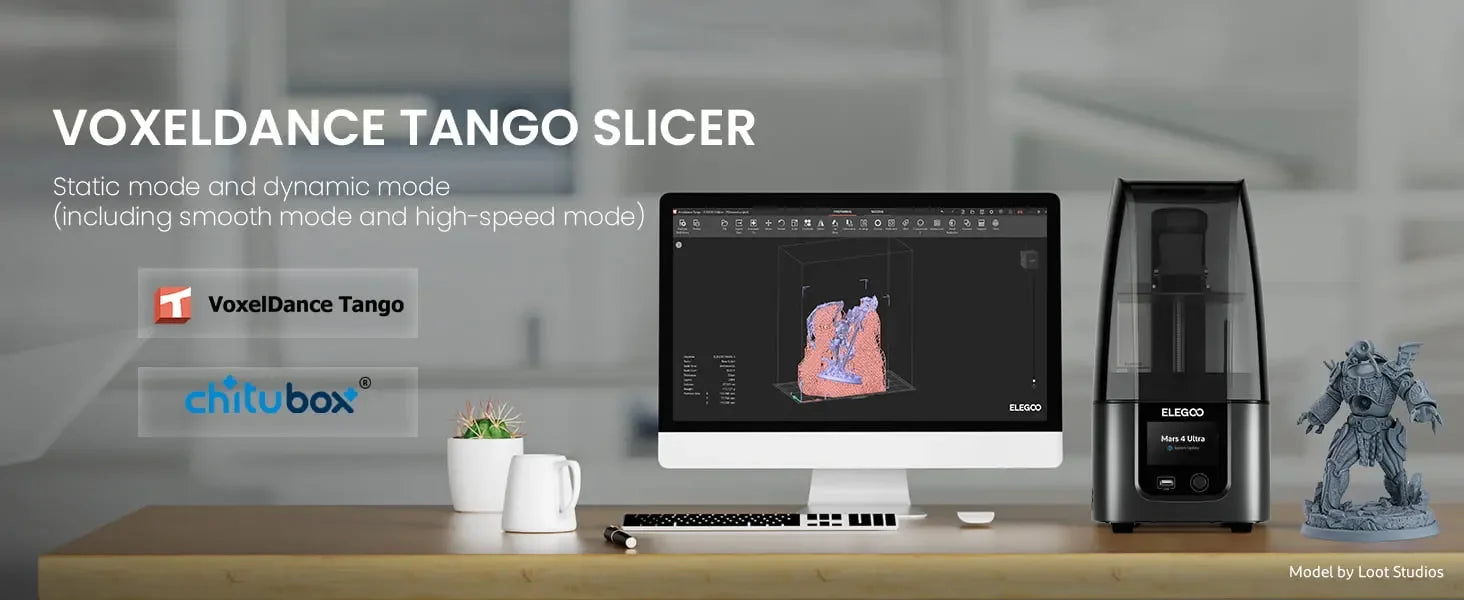

The printer comes with Voxeldance Tango Slicer, which offers both static mode and dynamic mode (including smooth and high-speed mode) to improve your printing efficiency. The open-sourced GOO slice file format is compatible with third-party slicing software, such as CHITUBOX and Lychee Slicer.
